cable ties-ball self-lock

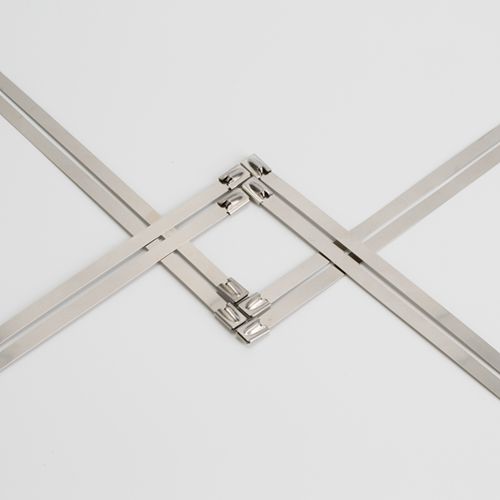

  • 4.6mm*400mm(15.75inch)Naked stainless cable ties-ball self-lock
  • 4.6mm*400mm(15.75inch)Naked stainless cable ties-ball self-lock
4.6mm*400mm(15.75inch)Naked stainless cable ties-ball self-lock4.6mm*400mm(15.75inch)Naked stainless cable ties-ball self-lock

4.6mm*400mm(15.75inch)Naked stainless cable ties-ball self-lock

  • s
  • Special Logo:Accept Customized
  • Material:304,316,201
  • Products Type:Self-Locking Cable Ties
  • Product description: 1.Characteristic:they have an unique ball locking mechanism that alloweasily and quickly installed and not undone. 2.Hight tensile strength:Non-flammability 3.Temperature:working temperature-60c~550
  • INQUIRY

1.Characteristic:they have an unique ball locking mechanism that alloweasily and quickly installed and not undone.
2.Hight tensile strength:Non-flammability
3.temperature:working temperature-60c~550c
4.High resistance to acetic acid,alkali acid,sulphuric acid,corrode etc.
5.All length are avaiable,stainless steel type :304,316.

JIONG No. Approx. length.
mm(inch)
Approx. width
mm(inch)
Thickness
mm
Max. Bundle Dia.
mm(inch)
Min.loop
tensile strength
N(lbs)
Pcs/Bag
JHCN-4.6 x 150 150(5.9) 4.6(0.181) 0.25 37(1.46) 600(135) 100
JHCN-4.6 x 200 200(7.87) 50(1.97)
JHCN-4.6 x 250 250(9.84) 63(2.48)
JHCN-4.6 x 300 300(11.8) 76(2.99)
JHCN-4.6 x 350 350(13.78) 89(3.5)
JHCN-4.6 x 400 400(15.75) 102(4.02)
JHCN-4.6 x 450 450(17.72) 115(4.53)
JHCN-4.6 x 500 500(19.69) 128(5.04)
JHCN-4.6 x 550 550(21.65) 141(5.55)
JHCN-4.6 x 600 600(23.62) 154(6.06)
